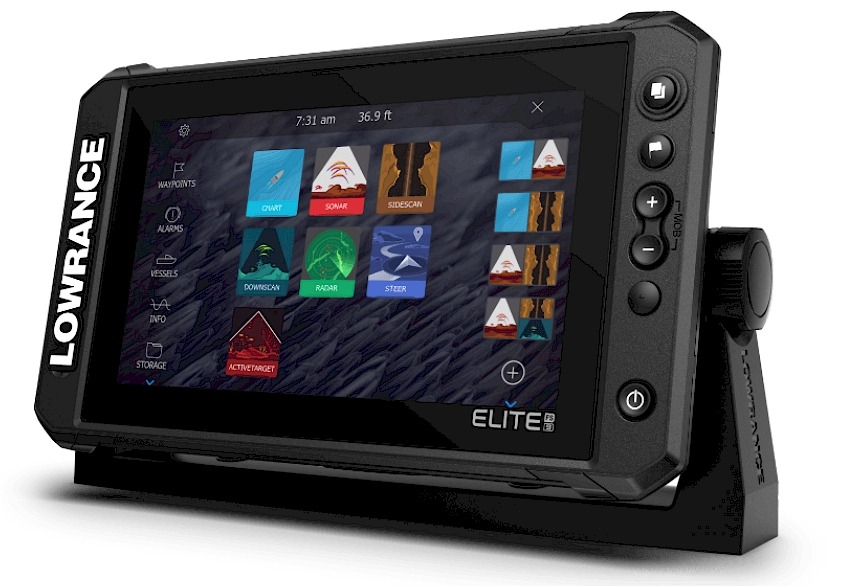

Elite FS-9

Lowrance Elite FS-9

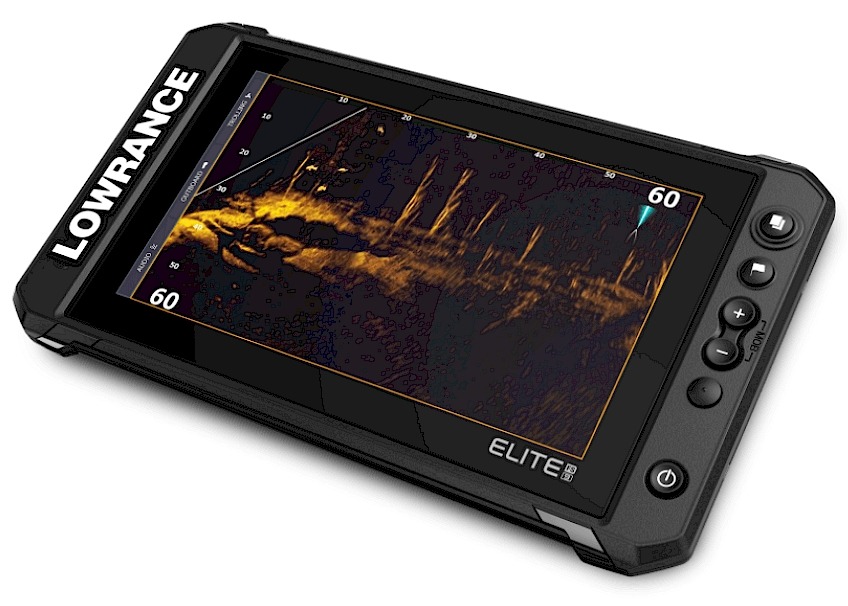

Het nieuwste paradepaardje van Lowrance, uiteraard met dezelfde capaciteiten als de "normale" Elite (Ti) serie, maar nu met enkele extra krachtige verschillen. Wellicht de belangrijkste nieuwe optie, is de mogelijkheid om te werken met Active Targeting (appart verkrijgbaar) waarmee je schitterende 3D beelden van vis, vegetatie en bodemprofiel op je cherm kunt weergeven.

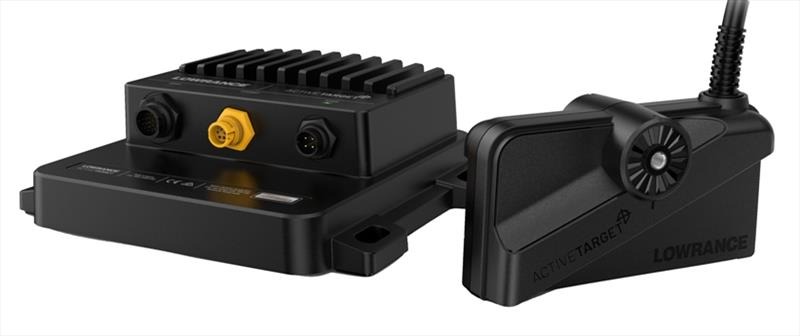

• Gereed voor ActiveTarget Live Sonar

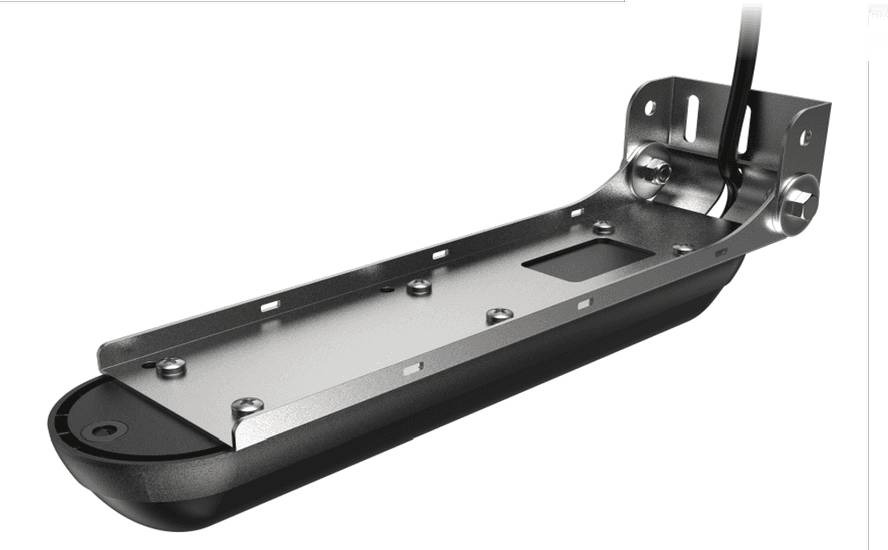

• Gereed voor Active Imaging 3-in-1
• FishReveal
• Bevat wereldwijde basiskaart, plus een breed scala aan kaartopties, waaronder C-MAP, Navionics en meer
• C-Map Easy Routing, Navionics Autorouting functionaliteit
• C-MAP Genesis Live Onscreen Mapping

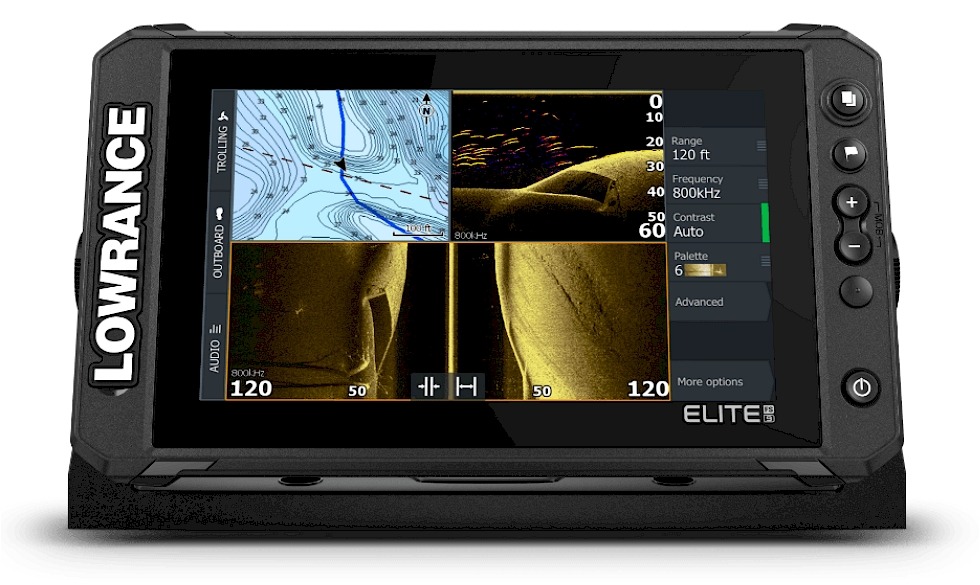

• Multi-touchscreen met hoge resolutie
• Geïntegreerde draadloze, NMEA 2000 en Ethernetconnectiviteit
• Volledige touchscreenbediening van Power-Pole ankers en Ghost trollingmotor

Specificaties Elite FS-9

Screen Brightness

>1200 nits

SD Card Storage

1 micro SD card up to 32GB

Ethernet Ports

1 x 100Mbit

Warranty Period

1 Year + 4 additional years ofupgrade optionsTotaling 5 years

Update rate

10 Hz

GPS

10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS

Shock Vibration

100,000 cycles of 20 G

Compass Safe

12" (300mm)

Supply Voltage

12v DC (10.8-17VDC)

GPS Receiver Channels

16

NMEA 2000 Connectivity

1x Micro-C

Power Consumption max

2.0A @ 13VDC with backlight on full

Power Consumption typical

2.0A @ 13VDC with backlight on full

Power Consumption min

2.0A @ 13VDC with backlight on full

Weight

2.7 lbs (1.2 kg)

Position Accuracy

20m RMS

Waypoints, Routes, Tracks

3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail

Time to First Fix

30s

Recommended Fuse Rating

3A

Storage Temperature Range

4°F to 140°F (-20°C to 60°C )

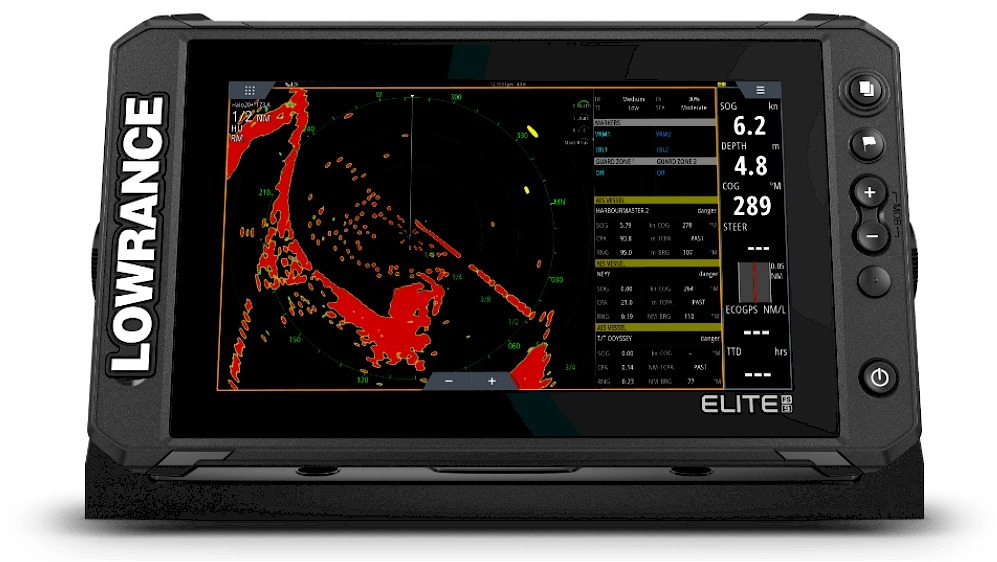

Radar compatibility

4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)

Operating Temperature Range

5°F to 131°F (-15°C to 55°C )

Viewing Angles

50° top60°bottom70° left/right

Humidity

60°C, 95% relative humidity (RH) for 18 hours

Display Resolution

800x480

AIS

AIS Chart overlay. Target vessel details.

Charts supported

C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners

Cartography included

C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)

Correction

DGPSWAASMSASEGNOSGLONASS

Mounting Type

Gimbal Bracket or Dash Flush Mount

Bluetooth

Integrated Bluetooth 4.0 with support for Bluetooth Classic

Sonar Compatibility

Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target

Item Connectivity WiFi

Internal 802.11b/g/n

Waterproofrating

IPX7 with card door closed

Interface

Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power

Internal Storage

None

PC Connectivity

None

Video

None

Digital Switching

None

Autopilot

Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway

Backlight Color

Pure White LED

Weather

SiriusXM via WM-4 (USA only)

Multimedia

SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
